Running an Amazon Linux2 virtual machine on your own hardware

Installing VirtualBox

Here's an example command to install VirtualBox and its dependencies on an Arch-based system like the one running on my server:

$ pacman -S libvirt virt-install virt-viewer virtualbox \
  virtualbox-guest-utils virtualbox-host-dkms

You will also need WireGuard and mkpasswd. Both are fairly easy to install on most systems if they aren't already available; consult your package manager for details. On most systems, the mkpasswd utility is packaged with whois, but this isn't the case for Arch-based distros. If you need mkpasswd on an Arch-based system, you can get it from the AUR.

Once the requisite tools are installed, go to https://cdn.amazonlinux.com/os-images/latest/ and download the .vdi image for VirtualBox in the "virtualbox" folder. There is a decent selection of images for other hypervisors available as well.

Editing The VDI File

To make the magic happen without using the VirtualBox GUI, we're going to (ab)use the cloud config that comes inside the official image. In order to actually edit the relevant files though, we'll need to deconstruct the .vdi image we just downloaded. This is where things get a little more involved. To understand why, we need a little background on VDI files.

VDI, or Virtual Disk Image (not to be confused with Microsoft's Virtual Desktop Infrastructure), is a file format that allows for de-duplication of zero-filled blocks in a raw disk image, preventing unused disk space within the image from being written back to the host filesystem. Just like a raw disk image, it includes partition tables, partitions, filesystems--the whole nine. VDI is VirtualBox's default disk image format.

VirtualBox gives us a handy tool to mount these special images via the Linux loopback virtual block device fuse driver using the following command syntax:

$ vboximg-mount -i $VM_UUID -o allow_root $MOUNTPOINT

This would create a few files in $MOUNTPOINT, each of which are separate partitions. It would seem a reasonable assumption that all one would have to do is mount one of these partitions and start editing files. But that would make too much sense. vboximg-mount uses fuse to mount a read only disk image, so any changes to the filesystem it contains (or any other part of the image) won't get written back to disk. For our purposes, this is pretty useless.

There exist third-party tools that claim to be able to edit VDI files in-place, but they all have suspicious-looking download pages, so I decided to avoid them. Fortunately, VirtualBox does come with a tool for dumping a raw disk image from a VDI file. This is where the 50G of free disk space comes in. Raw disk images aren't de-duplicated, so that petite 2G file you downloaded will balloon to it's actual size of 25G. You may want to double check that your disk(s) have sufficient free space with df -h before proceeding.

To dump the raw image, use the following command and syntax:

$ vboxmanage clonemedium --format RAW $VDI_FILE.vdi $RAW_IMAGE.img

In my case, this was:

$ vboxmanage clonemedium --format RAW \
  amzn2-virtualbox-2.0.20211005.0-x86_64.xfs.gpt.vdi /tmp/aml2.img

That command will error if there is insufficient disk space.

If you didn't run out of disk or have some other error, you should get some output similar to this:

0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
Clone medium created in format 'RAW'. UUID: e60d412f-f0aa-47be-a7be-fc0ba841baf3

Running fdisk on the raw image that was just created will give us some necessary info.

$ fdisk -l /tmp/aml2.img

Disk /tmp/aml2.img: 25 GiB, 26843545600 bytes, 52428800 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: A25D5C3B-C384-4FD8-AC66-8E0AE36EF9DF

Device           Start      End  Sectors Size Type
/tmp/aml2.img1    4096 52428766 52424671  25G Linux filesystem
/tmp/aml2.img128  2048     4095     2048   1M BIOS boot

Partition table entries are not in disk order.

We can see that it has a valid GPT with two partitions. Raw block devices aren't mountable on their own, so we'll need to extract the partition we want with disk dump. We're going for the 25G root partition. We'll tell disk dump to read from /tmp/aml2.img starting at sector 4096 by telling it to skip to that sector of input. The starting sector of each partition can be found in the Start column of the previous fdisk output.

GPT doesn't allow partitions to extend all the way to the end of the block device, because it stores its backup partition table there. Consequently, we need to tell disk dump the exact number of sectors we want to snarf from input. In the Sectors column of fdisk output, we can see how many sectors are in each partition, so we'll tell disk dump to count 52424671 sectors of input before stopping.

The host triplet in the original image filename gives us ...-x86_64.xfs.gpt.vdi, so we can infer that the root partition contains an XFS filesystem. Let's call the output file /tmp/aml2.xfs.

$ dd if=/tmp/aml2.img of=/tmp/aml2.xfs skip=4096 count=52424671 status=progress

26840399872 bytes (27 GB, 25 GiB) copied, 441 s, 60.9 MB/s
52424671+0 records in
52424671+0 records out
26841431552 bytes (27 GB, 25 GiB) copied, 440.714 s, 60.9 MB/s

We finally have a writable filesystem image, so let's mount it and get to work. I used tmpmnt/ in my home directory as my mount destination, but you can use whatever is convenient; the name isn't important.

$ sudo -Es
$ mount -t xfs -o rw /tmp/aml2.xfs tmpmnt/
$ cd tmpmnt

Let's add authentication data to the cloud config so we can use SSH and sudo. We'll need a password hash, an SSH public key from the Laptop, and an SSH public key from the Server.

# On the Server
$ cat .ssh/vmhost_ed25519.pub

ssh-ed25519 SERVER-PUBLIC-KEY VM Host

# On the Laptop
$ cat .ssh/aml2-endpoint_ed25519.pub

ssh-ed25519 LAPTOP-PUBLIC-KEY Endpoint PC

# note: PASSWORD is the cleartext password here.
$ mkpasswd -m sha-512 PASSWORD

PASSWORD_HASH
PASSWORD_HASH

Open the cloud config file in your text editor to add the keys and password hash.

Edit this section in /etc/cloud/cloud.cfg towards the bottom of the file:

system_info:
  default_user:
    name: ec2-user
    lock_passwd: false
    gecos: EC2 Default User
    groups: [wheel, adm, systemd-journal]
    sudo: ["ALL=(ALL) NOPASSWD:ALL"]
    shell: /bin/bash
  distro: amazon
  paths:
    cloud_dir: /var/lib/cloud
    templates_dir: /etc/cloud/templates
  ssh_svcname: sshd

so that it looks like this:

system_info:
  default_user:
    name: ec2-user
    lock_passwd: false
    gecos: EC2 Default User
    groups: [wheel, adm, systemd-journal]
    sudo: ["ALL=(ALL) NOPASSWD:ALL"]
    shell: /bin/bash
    passwd: PASSWORD_HASH
    ssh_authorized_keys:
      - ssh-ed25519 SERVER-PUBLIC-KEY VM Host
      - ssh-ed25519 LAPTOP-PUBLIC-KEY Endpoint PC
  distro: amazon
  paths:
    cloud_dir: /var/lib/cloud
    templates_dir: /etc/cloud/templates
  ssh_svcname: sshd

Adding those SSH public keys will allow inbound SSH connections to authenticate as ec2-user using either of the corresponding private keys. Astute readers may have noticed that we don't actually need to set the password to use sudo because of that NOPASSWD directive there, but it's a good thing to have in your back pocket in case you need to perform some other action that requires authentication.

Now we can exit that directory, unmount the filesystem, and exit the root shell.

$ cd
$ umount tmpmount
$ exit

To put the modified partition back inside the disk image we'll need disk dump again. Note that we're using seek instead of skip here, since we're skipping sectors on the output file, rather than the input. Don't forget to use conv=notrunc here so dd doesn't overwrite the backup partition table.

$ dd of=/tmp/aml2.img if=/tmp/aml2.xfs seek=4096 status=progress conv=notrunc

26841010688 bytes (27 GB, 25 GiB) copied, 1093 s, 24.6 MB/s
52424671+0 records in
52424671+0 records out
26841431552 bytes (27 GB, 25 GiB) copied, 1093.03 s, 24.6 MB/s

This is a good opportunity to double check our partition table to ensure we didn't make any errors.

$ fdisk -l /tmp/aml2.img

 Disk /tmp/aml2.img: 25 GiB, 26843545600 bytes, 52428800 sectors
 Units: sectors of 1 * 512 = 512 bytes
 Sector size (logical/physical): 512 bytes / 512 bytes
 I/O size (minimum/optimal): 512 bytes / 512 bytes
 Disklabel type: gpt
 Disk identifier: A25D5C3B-C384-4FD8-AC66-8E0AE36EF9DF

 Device           Start      End  Sectors Size Type
 /tmp/aml2.img1    4096 52428766 52424671  25G Linux filesystem
 /tmp/aml2.img128  2048     4095     2048   1M BIOS boot

 Partition table entries are not in disk order.

If that wasn't the output you got, you might be in trouble...

Time to put the genie back in the bottle. Squashing that disk image back into a VDI file is pretty straightforward, but takes a while:

$ vboxmanage convertfromraw /tmp/aml2.img ./aml2.vdi

Converting from raw image file="/tmp/aml2.img" to file="./aml2.vdi"...
Creating dynamic image with size 26843545600 bytes (25600MB).../pre>

That's it for modifying the disk image. It's now usable for a headless install.

Configuring The VM

The first time I set up a VirtualBox VM, I used sudo and stored my VMs in a root-owned directory under /var. Don't do that. VirtualBox stores VM metadata in the user's $XDG_CONFIG_HOME which is not really what we want for root. We're not binding to any low ports on the Server, so that isn't necessary. Additionally, it's safer to run VMs as a less privileged user.

To install the VM in the home of a regular user, login as that user and:

$ mkdir vbox
$ vboxmanage setproperty machinefolder $PWD/vbox
$ vboxmanage createvm --name aml2-demo --register

Virtual machine 'aml2-demo' is created and registered.
UUID: 06c3542d-47e6-46f4-ba68-f2c86a105ce9
Settings file: '/home/username/vbox/aml2-demo/aml2-demo.vbox'

This designates vbox as the directory under which subdirectories named after their corresponding VM will be created upon VM registration. Within each of those subdirectories, VirtualBox creates an XML file containing all configuration settings for that VM.

It's time to add some configuration to the VM using the modifyvm command. We'll limit it to one CPU with the --cpus 1 flag, specify the maximum amount of RAM (in megabytes) that we'll allow the VM to use with --memory 1024, and similarly limit the video ram to a maximum of 128MB with --vram 128.

Setting --acpi on will allow us to suspend and power down the VM from the VirtualBox CLI. To make the virtual network devices on the VM accessible from the Server, we'll create a NIC and set it to use VirtualBox's builtin NAT and DHCP with --nic1 nat. We'll set this NIC to be activated automatically whenever the VM is powered on with --cableconnected1 on. There are myriad ways to create virtual NICs for VMs under VirtualBox, but this is the simplest for our purposes. If you have a bunch of other VMs and plan on emulating something more complex, e.g., VPC, you'll need to consult the VirtualBox documentation for the appropriate configuration. A full list of available NIC types can be found in the VirtualBox documentation.

In order to use SSH and WireGuard, we'll need to set up some port-forwarding rules within VirtualBox. A port-forwarding rule can be set by appending the following flag:

--natpf${NIC-NUMBER} "$RULE_NAME,$PROTOCOL,$SERVER_IP,$SERVER_PORT,$VM_IP,$VM_PORT"

IP addresses that are omitted will be set to 0.0.0.0. If your Server firewall is set up conservatively, this isn't an issue, and since we can't assume we'll know what IP address VirtualBox will give the VM, leaving it out keeps things simple. An example SSH port-forwarding rule could be: --natpf1 "ssh,tcp,,8222,,22", where 8222 is the port on your Server that will accept connections for forwarding to the VM. This is the rule I'll use for SSH. Be sure to use a non-privileged, unused port here. You can check whether or not the port is in use with netstat -tulp.

We'll also be forwarding a port for WireGuard with --natpf1 "wg0tun0,udp,,8242,,8242" The same rules apply for WireGuard as do for SSH: the VM port must be the same port that is used by the WireGuard device on the VM, and the Server port must be non-privileged and unused. More than one port forwardiing rule may be specified at once by using multiple --natpf$N flags.

Since Amazon Linux 2 is based on CentOS, which is in turn based on Red Hat, we need to set the OS type to RedHat_64. Finally, the VM needs a block device to boot from. We have a surgically altered VDI image that will stand in for a hard drive, so we'll add --boot1 disk to the modifyvm command. We'll add the actual image file later on.

Here's the whole command put together:

$ vboxmanage modifyvm aml2-demo --cpus 1 --memory 1024 --vram 128 --acpi on \
  --boot1 disk --nic1 nat --cableconnected1 on --natpf1 "ssh,tcp,,8222,,22" \
  --natpf1 "wg0tun0,udp,,8242,,8242" --ostype RedHat_64

Now we need to attach the edited VDI to the VM we've just configured with storagectl and storageattach. We'll name the connection satac and make it a SATA type connection.

$ vboxmanage storagectl aml2-demo --name satac --add sata
$ cp aml2.vdi ./vbox/aml2-demo/
$ vboxmanage storageattach aml2-demo --storagectl satac --port 0 \
  --device 0 --type hdd --medium vbox/aml2-demo/aml2.vdi

All of these settings are also available from the VirtualBox GUI, for readers who do not need the Server to be headless.

If you've botched the configuration of the VM and want to start over, you can delete the VM with vboxmanage unregistervm aml2-demo --delete. It is important to set the --delete flag, or you will end up with a dangling reference that will prevent you from starting over. I found this out the hard way. If you end up doing this, you need to delete the VirtualBox registry which is stored in $XDG_CONFIG_HOME. Typically, you can just run rm -rv ~/.config/VirtualBox and start over from the beginning of this section.

Starting The VM

The VM can now be powered on with:

$ vboxmanage startvm aml2-demo --type headless

Or:

$ vboxheadless --startvm aml2-demo

Waiting for VM "aml2-demo" to power on...
VM "aml2-demo" has been successfully started.

On first boot, cloud config will set the authorized keys and password for ec2-user to the values that were added to the cloud config file. After giving the VM a moment to boot and get itself set up, inbound SSH connections from the Server via the new port-forwarding rule should work.

$ ssh -vv -i .ssh/vmhost_ed25519 -p 8222 ec2-user@localhost

       __|  __|_  )
       _|  (     /   Amazon Linux 2 AMI
      ___|\___|___|

https://aws.amazon.com/amazon-linux-2/
No packages needed for security; 4 packages available
Run "sudo yum update" to apply all updates.
[ec2-user@localhost ~]$

Troubleshooting

If you weren't able to establish an SSH connection from the Server, double check the usual suspects: check your firewall settings, ensure you're using the port that you set in the port-forwarding rule, and check the VM log for clues: less ~/vbox/aml2-demo/Logs/VBox.log.

If you're still stuck, and can attach a display to your Server, you can use the VirtualBox GUI to sort things out manually.

To do so, power off the VM and restart it in GUI mode:

$ vboxmanage controlvm aml2-demo poweroff

0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%

vboxmanage startvm aml2-backstage --type gui

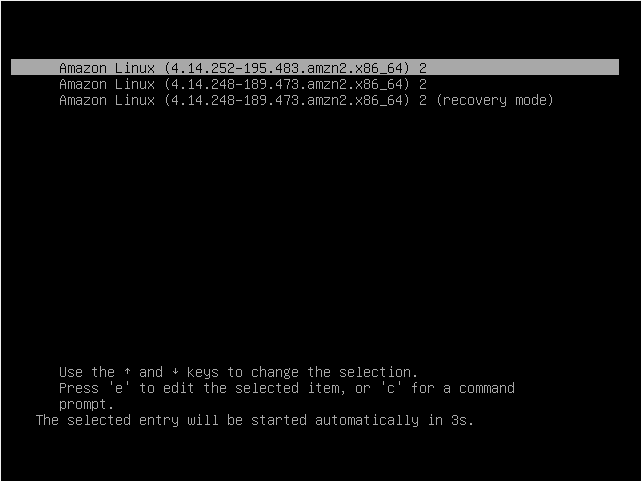

This will launch the VirtualBox GUI and connect it's virtual display to your VM, giving you a grub menu like this:

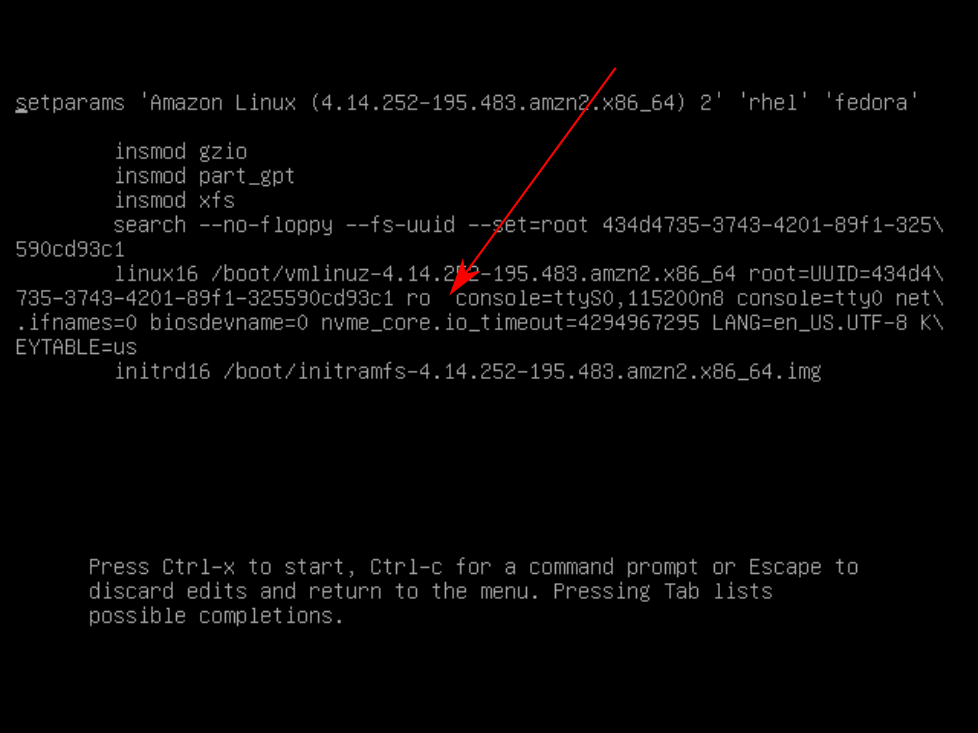

Press "e" to edit the default boot option. This will allow you to edit the kernel cmdline.

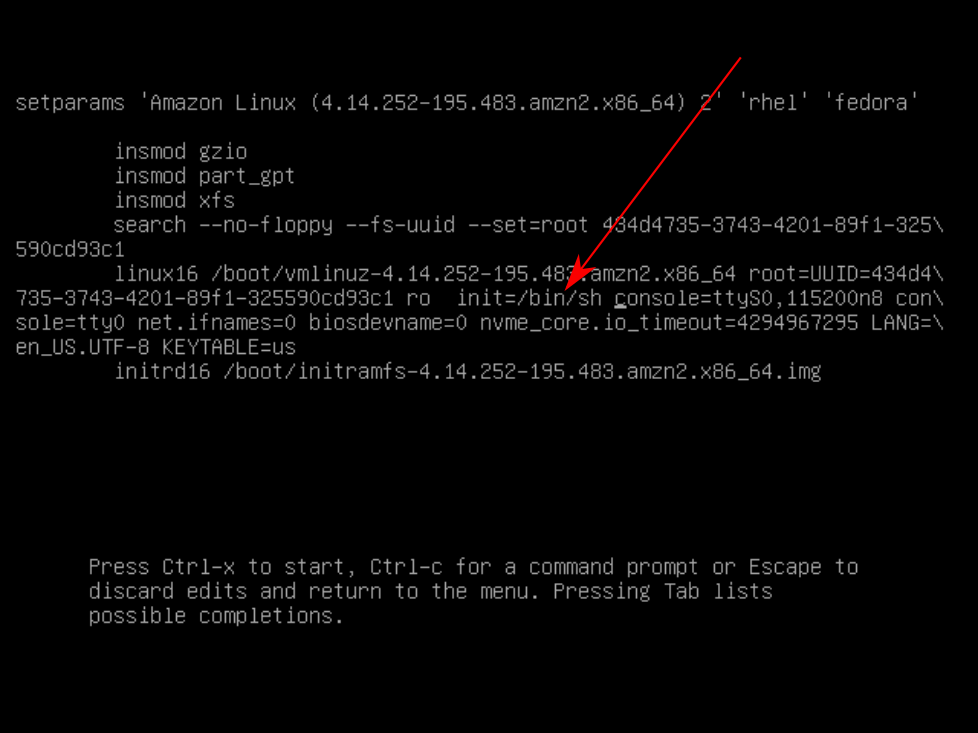

Editing the grub config options to add init=/bin/sh to the cmdline, will allow you to boot the VM in single-user-mode.

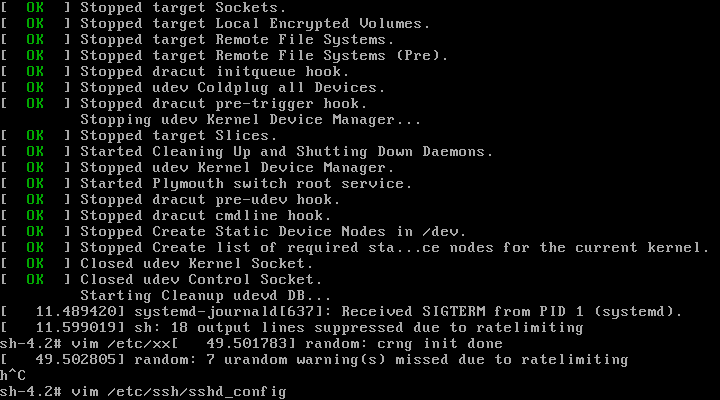

Hit "Ctrl-X" to boot the edited cmdline and enter single-user-mode, where you can edit passwords, edit /etc/sshd_config, install WireGuard, etc.

WireGuard

$ sudo -i
# as root on vm
$ yum install https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
Loaded plugins: langpacks, priorities, update-motd
epel-release-latest-7.noarch.rpm                                                               |  15 kB  00:00:00
Examining /var/tmp/yum-root-WDyQMU/epel-release-latest-7.noarch.rpm: epel-release-7-14.noarch
Marking /var/tmp/yum-root-WDyQMU/epel-release-latest-7.noarch.rpm to be installed
Resolving Dependencies
--> Running transaction check
---> Package epel-release.noarch 0:7-14 will be installed
...
Installed:
  epel-release.noarch 0:7-14

Complete!

$ curl -o /etc/yum.repos.d/jdoss-wireguard-epel-7.repo \
  https://copr.fedorainfracloud.org/coprs/jdoss/wireguard/repo/epel-7/jdoss-wireguard-epel-7.repo

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   364  100   364    0     0    957      0 --:--:-- --:--:-- --:--:--   955

$ yum install wireguard-dkms wireguard-tools

Loaded plugins: langpacks, priorities, update-motd
amzn2-core
...
--> Running transaction check
...

 ...
 Retrieving key from file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
 Importing GPG key 0x352C64E5:
  Userid     : "Fedora EPEL (7) "
  Fingerprint: 91e9 7d7c 4a5e 96f1 7f3e 888f 6a2f aea2 352c 64e5
  Package    : epel-release-7-14.noarch (installed)
  From       : /etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
...
 Installed:
   wireguard-dkms.noarch 1:1.0.20210606-2.el7
...
 Complete!

$ cd /etc/wireguard
$ umask 077
$ wg genkey > wg0key
$ wg pubkey < wg0key | tee wg0key.pub
VM_NEW_WIREGUARD_PUBLIC_KEY

ip link add dev wg0 type wireguard
wg set wg0 private-key /etc/wireguard/wg0key listen-port 8242
ip addr add 10.0.0.42/24 dev wg0;

$ wg set $VM_WGDEV_NAME peer $LAPTOP_PUBKEY endpoint \
  $SERVER_VBOX_NAT_IP:$SERVER_WGDEV_LISTEN_PORT allowed-ips $LAPTOP_WGDEV_IP/32

interface: wg0
  public key: WIREGUARD_PUBLIC_KEY
  private key: (hidden)
  listening port: 77777

$ grep -i NAT vbox/aml2-demo/Logs/VBox.log

00:00:00.155386   Driver <string>  = "NAT" (cb=4)
00:00:00.315620 NAT: Guest address guess set to 10.0.2.15 by initialization
00:00:00.315680 NAT: resolv.conf: nameserver ::1
00:00:00.315684 NAT: resolv.conf: nameserver 127.0.0.1
00:00:00.315693 NAT: DNS#0: 10.0.2.2
00:00:00.315720 NAT: Set redirect TCP 0.0.0.0:8222 -> 0.0.0.0:22
00:00:00.315739 NAT: Set redirect UDP 0.0.0.0:8242 -> 0.0.0.0:8242
00:00:10.227905 NAT: Old socket recv size: 128KB
00:00:10.228353 NAT: Old socket send size: 128KB
00:00:34.159829 NAT: Link up
00:00:39.199732 NAT: IPv6 not supported
00:00:40.011811 NAT: resolv.conf: nameserver ::1
00:00:40.011833 NAT: resolv.conf: nameserver 127.0.0.1
00:00:40.011853 NAT: DNS#0: 10.0.2.2
00:00:40.011860 NAT: DHCP offered IP address 10.0.2.15

...
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wg0: flags=209<UP,POINTOPOINT,RUNNING,NOARP>  mtu 1420
        inet 10.0.0.7  netmask 255.255.255.0  destination 10.0.0.7
        unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00  txqueuelen 1000  (UNSPEC)
...

$ wg set wg0 peer WIREGUARD_PUBLIC_KEY endpoint \
  10.0.2.2:8888 allowed-ips 10.0.0.7/32

$ wg showconf wg0 > /etc/wireguard/wg0.conf

$ ip link set wg0 up;

$ sudo wg set $LAPTOP_WGDEV_NAME peer $VM_PUBLIC_KEY endpoint \
  $SERVER_WGDEV_IP:8242 allowed-ips $VM_WGDEV_IP/32

$ sudo wg set wg0 peer VM_NEW_WIREGUARD_PUBLIC_KEY endpoint \
  10.0.0.8:8242 allowed-ips 10.0.0.42/32
$ sudo wg showconf wg0 > /etc/wireguard/wg0.conf

$ ssh -i .ssh/aml2-endpoint_ed25519 ec2-user@10.0.0.42

Last login: Mon Nov 29 23:09:02 2021 from 10.0.2.2

       __|  __|_  )
       _|  (     /   Amazon Linux 2 AMI
      ___|\___|___|

https://aws.amazon.com/amazon-linux-2/
No packages needed for security; 4 packages available
Run "sudo yum update" to apply all updates.
[ec2-user@localhost ~]$

$ diff -u /etc/hosts
-127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
+127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4 aml2.demo
 ::1         localhost6 localhost6.localdomain6

$ diff -u /etc/hosts
+10.0.0.42               aml2.demo

$ ssh -i .ssh/aml2-endpoint_ed25519 ec2-user@aml2.demo

Last login: Tue Nov 30 02:24:00 2021 from 10.0.0.2

       __|  __|_  )
       _|  (     /   Amazon Linux 2 AMI
      ___|\___|___|

https://aws.amazon.com/amazon-linux-2/
No packages needed for security; 4 packages available
Run "sudo yum update" to apply all updates.
[ec2-user@localhost ~]$

# Workaround for potential parallel execution issues, because we \
# need inet and netifs to be working before we can set up WireGuard.
sleep 15;
echo "Initalizing wg0 NIC..."
# Start the wg0 interface to enable vpn
set -x;
ip link add wg0 type wireguard;
ip addr add 10.0.0.42/24 dev wg0;
wg syncconf wg0 /etc/wireguard/wg0.conf;
ip link set wg0 up;

$ chmod -v +x /etc/rc.local
$ systemctl enable rc-local.service

More to read

You might also like to read Jenkins, Docker build and Amazon EC2 Container Registry, or First day with Docker.

More technical posts are also available on the DjaoDjin blog, as well as business lessons we learned running a SaaS application hosting platform.
